Release of Hellobox GX6605S ROM New version & HelloMerger V1.3

[JoeU]

BASED ON CONNECTOR POSITION IT SHOULD BE LIKE IN IMAGE ATTACHED AND DEPNDING ON YOUR CONNECTOR TYPE LOOK FOR CONNECTION IN IMAGE.

DO IT ON YOUR OWN RISK . DONT BLAME ME FOR ANYTHING WRONG HAPPENS AS THER IS NO LABELING.STILL YOU CAN CHECK GND WITH CONTINUITY CHECKER.

please help me i am waiting for your reply thanks

[esdhrgl1]

BASED ON CONNECTOR POSITION IT SHOULD BE LIKE IN IMAGE ATTACHED AND DEPNDING ON YOUR CONNECTOR TYPE LOOK FOR CONNECTION IN IMAGE.

DO IT ON YOUR OWN RISK . DONT BLAME ME FOR ANYTHING WRONG HAPPENS AS THER IS NO LABELING.STILL YOU CAN CHECK GND WITH CONTINUITY CHECKER.

hay bro i buy everything but i get this type of error when i try
bootrom error wait for get please check stb uart receive
fail

please help me i am waiting for your reply thanks

Do some things
1. Check for ground if it is ground with continuity checker
2 try with yaffs checked
3 If still unable to flash after yaffs checked try toggling tx and rx wire then flash without & with yaffs.

Most important share screenshot of device manager windows with serial com port for confirmation. In your case it seems like com6.


Last try with original dump of box

[JoeU]

BASED ON CONNECTOR POSITION IT SHOULD BE LIKE IN IMAGE ATTACHED AND DEPNDING ON YOUR CONNECTOR TYPE LOOK FOR CONNECTION IN IMAGE.

DO IT ON YOUR OWN RISK . DONT BLAME ME FOR ANYTHING WRONG HAPPENS AS THER IS NO LABELING.STILL YOU CAN CHECK GND WITH CONTINUITY CHECKER.

hay bro i buy everything but i get this type of error when i try
bootrom error wait for get please check stb uart receive
fail

please help me i am waiting for your reply thanks

Do some things
1. Check for ground if it is ground with continuity checker
2 try with yaffs checked
3 If still unable to flash after yaffs checked try toggling tx and rx wire then flash without & with yaffs.

Most important share screenshot of device manager windows with serial com port for confirmation. In your case it seems like com6.


Last try with original dump of box

what is the problem

[aa7590]

hay bro i buy everything but i get this type of error when i try
bootrom error wait for get please check stb uart receive
fail

please help me i am waiting for your reply thanks

Do some things
1. Check for ground if it is ground with continuity checker
2 try with yaffs checked
3 If still unable to flash after yaffs checked try toggling tx and rx wire then flash without & with yaffs.

Most important share screenshot of device manager windows with serial com port for confirmation. In your case it seems like com6.


Last try with original dump of box

i try with original dumb file and also try with yaff and without yaf but it always fail i also disabel window defender.... what is the problem?
what is the problem

B ROTHER CHANGE THE RX WITH DX PIN IN 6605S BOARD MEAD LEFT CHAN GE WITH RIGHT PIN OK

[esdhrgl1]

hay bro i buy everything but i get this type of error when i try
bootrom error wait for get please check stb uart receive
fail

please help me i am waiting for your reply thanks

Do some things
1. Check for ground if it is ground with continuity checker
2 try with yaffs checked
3 If still unable to flash after yaffs checked try toggling tx and rx wire then flash without & with yaffs.

Most important share screenshot of device manager windows with serial com port for confirmation. In your case it seems like com6.


Last try with original dump of box

i try with original dumb file and also try with yaff and without yaf but it always fail i also disabel window defender.... what is the problem?
what is the problem

Try downloading rs 232 downloader like ver 1.21 older then yours and run it as administrator.
Try finding ground pin using multimeter if u have!

And about problem you doing something wrong and only you can resolve it because we dont have board . Like you erassed your flash before uploading boot to ram or something like that.


And one thing please upload complete clear image of board high resolution with main ic that
meansn of gx6605s

[JoeU]

Do some things
1. Check for ground if it is ground with continuity checker
2 try with yaffs checked
3 If still unable to flash after yaffs checked try toggling tx and rx wire then flash without & with yaffs.

Most important share screenshot of device manager windows with serial com port for confirmation. In your case it seems like com6.


Last try with original dump of box

i try with original dumb file and also try with yaff and without yaf but it always fail i also disabel window defender.... what is the problem?
what is the problem

Try downloading rs 232 downloader like ver 1.21 older then yours and run it as administrator.
Try finding ground pin using multimeter if u have!

And about problem you doing something wrong and only you can resolve it because we dont have board . Like you erassed your flash before uploading boot to ram or something like that.


And one thing please upload complete clear image of board high resolution with main ic that
meansn of gx6605s

bundle of thanks bro its working software updated ......... with help of yours ♥

[josetoni]

please help me.

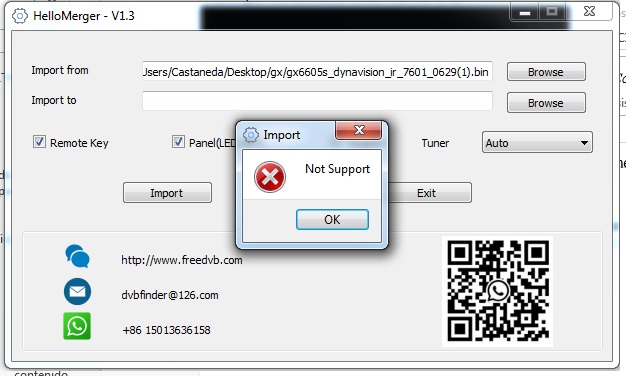

I tryed to use your software but I could not because I recive the message not support

[Joey]

please help me.
I tryed to use your software but I could not because I recive the message not support

Merge for you.

Next version will fix it,please wait.

[josetoni]

I wait. thanks

[josetoni]

Thanks for the merge Joey but it does not work properly, the image freezes and does not open the audio
